Concrete Design Codes:

ACI 318-99, AASHTO LRFD 1997

Eurocode 2

BS 8110

CSA-A23.3-94

BDS 1988, BDS HT 1989

NZS 3101-95

DIN 1045

UBC 97

Type of Loads:

N, Mx - axial force + axial bending moment.

N, Mx, My - axial force + biaxial bending moment.

Cross-section Types:

Standard cross-section types

User defined cross-section type

Analysis Types:

1. Design Section: The program calculates the necessary area of reinforcing bars. (Examples 1, 2)
2. Check Section: The program checks the capacity of R/C cross-sections with predefined reinforcement.
3. Failure Surface: The program calculates and draws interaction failure surfaces of R/C cross-sections with predefined reinforcement. (examples 3, 4)
4. Stress-strain: The program calculates the strains and stresses of R/C cross-sections with predefined reinforcement.
5. 1/r - EI: The program calculates the curvatures and stiffnesses of R/C cross-sections with predefined reinforcement.
6. 1/r - EI chart: The program calculates and draws the curvature and stiffness charts of R/C cross-sections with predefined reinforcement. (Example 5)
7. Crack widths: The program calculates the cracks widths and spaces between the cracks of R/C cross-sections with predefined.

Examples:

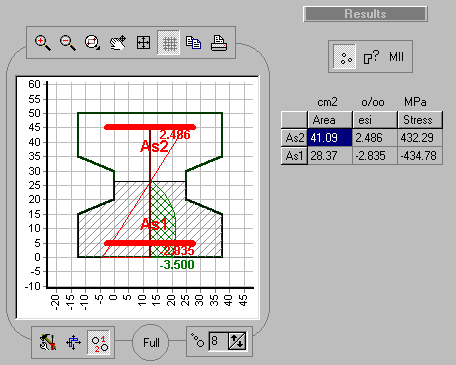

Example 1: Design Section (Applied loads: N, Mx, My)

Example 2: Design Section (Applied loads: N, Mx )

Example 3: Mx-N Interaction Failure Surface

Example 4: Mx-My Interaction Failure Surface
